分析　フロー図

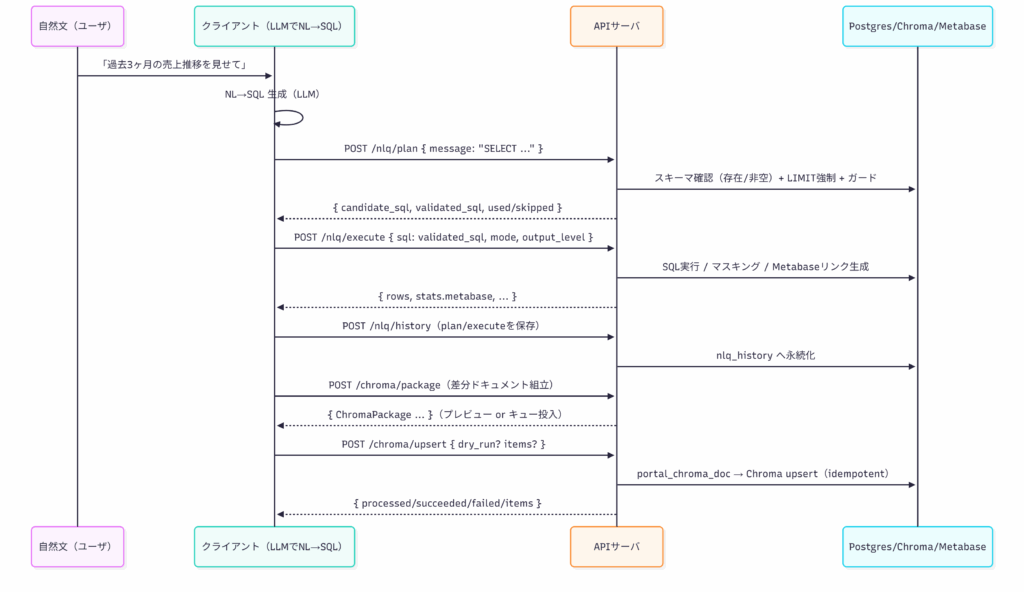

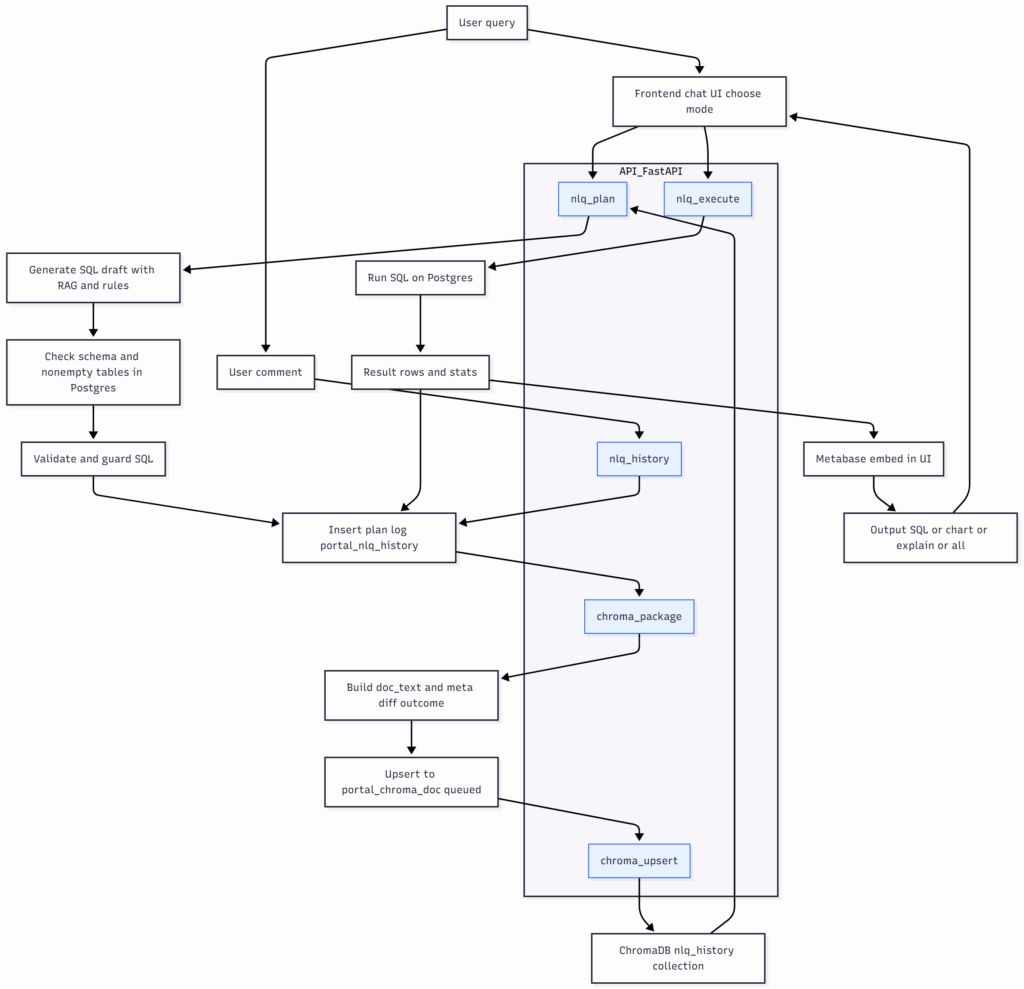

flowchart TD
A[User query] --> B[Frontend chat UI choose mode]
B --> C[nlq_plan]

subgraph API_FastAPI
  C[nlq_plan]
  D[nlq_execute]
  E[nlq_history]
  F[chroma_package]
  G[chroma_upsert]
end

C --> H[Generate SQL draft with RAG and rules]
H --> I[Check schema and nonempty tables in Postgres]
I --> J[Validate and guard SQL]
J --> K[Insert plan log portal_nlq_history]
K --> F

B --> D
D --> L[Run SQL on Postgres]
L --> M[Result rows and stats]
M --> N[Metabase embed in UI]
M --> K

A --> O[User comment]
O --> E
E --> K

F --> P[Build doc_text and meta diff outcome]
P --> Q[Upsert to portal_chroma_doc queued]
Q --> G
G --> R[ChromaDB nlq_history collection]
R --> C

N --> S[Output SQL or chart or explain or all]
S --> B

classDef api fill:#e9f2ff,stroke:#1f5fff,stroke-width:1.2px;
class C,D,E,F,G api;
